 Honeycomb PVC Fills

We are a trusted name engaged in manufacturing a comprehensive range of Honeycomb PVC Fills which are continuously vacuum formed. These are superior in quality in terms of durability, user-friendliness and maintenance. Some essentials features are:

    These are specially treated to offer maximum contact area for heat exchange.

• In it, the crossing of air and water streams is in close proximity
• The proximity creates a diffused turbulence which is conducive to evaporation and efficient heat transfer.

 1) Rigid Poly Vinyl chloride (PVC)

 2) Honey comb design with double edge folded very large contact surface area
 3) Fills Flute height 12mm to 19mm & sheet thick 0.2 to 0.25 mm
 4) Fill Size : 600mm x 300mm x 150mm
 5) Color : Blue, Black, White.

 Black Honeycomb PVC Fills

Our qualitative range of Black Honeycomb PVC Fills are continuously vacuum formed. These are long lasting, resistant to rugged environment, simple and sturdy in construct. Some essentials features are:

    Specially treated to offer maximum contact area for heat exchange.

• The crossing of air and water streams is in close proximity
• The proximity develops a diffused turbulence which is conducive to evaporation and efficient heat transfer.

1) Rigid Poly Vinyl chloride (PVC)

2) Honey comb design with double edge folded very large contact surface area
3) Fills Flute height 12mm to 19mm & sheet thick 0.2 to 0.25 mm
4) Fill Size : 600mm x 300mm x 150mm
5) Color : Black

 Cooling Tower PVC Fill

We have emerged as the foremost manufacturer, trader, exporter and supplier of Cooling Tower PVC Fill. The offered pad is treated with stiffening and wetting agents to provide the cooling without any water carryover. Our quality controllers stringently check the entire range to ensures its superior performance. Apart from this, client can avail this pad from the market at most feasible price.

Features:

• Lower operating cost

• Comfortable habitation

• Higher productivity

• No water carry-over

• Strong and self supporting

• Dirt resistant

• Low maintenance

 Specifications:

 The evaporative cooling pad is cellulose material impregnated with insoluble anti-rot salts and rigidify saturates.

• The material has spatial crossing linking technology with high absorb ability.

• It is water resistant, anti-mildew and has a long service life.

Some of the applications of our cooling pads are:

• Comfort cooling

• Vegetable storage

• Mushroom farming

• Seed farming

• Dairy farms

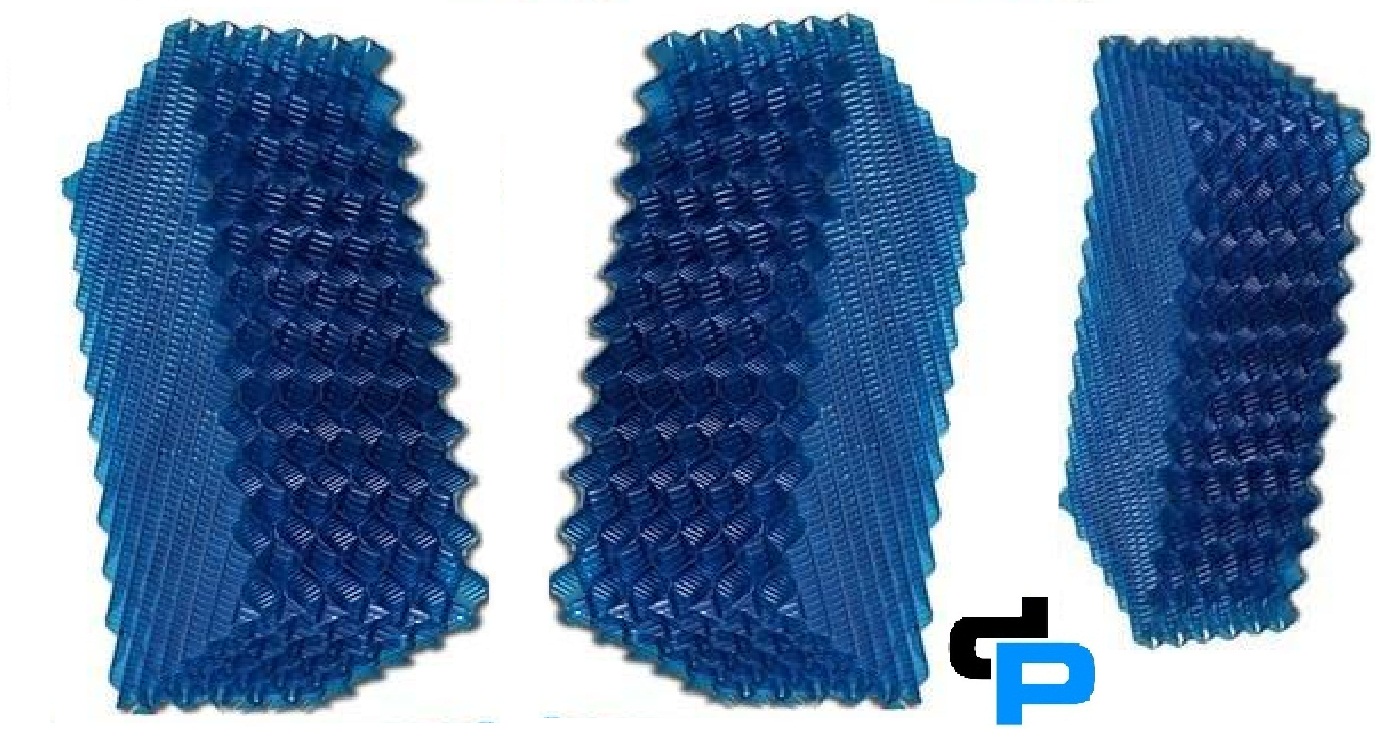

Blue Honeycomb PVC Fills

 Our qualitative range of Blue Honeycomb PVC Fills are continuously vacuum formed. These are long lasting, resistant to rugged environment, simple and sturdy in construct. Some essentials features are:

• Specially treated to offer maximum contact area for heat exchange.
• The crossing of air and water streams is in close proximity
• The proximity develops a diffused turbulence which is conducive to evaporation and efficient heat transfer.

1) Rigid Poly Vinyl chloride (PVC)
2) Honey comb design with double edge folded very large contact surface area

3) Fills Flute height 12mm to 19mm & sheet thick 0.2 to 0.25 mm

4) Fill Size : 600mm x 300mm x 150mm

5) Color : Blue

 White Honeycomb PVC Fills

Our qualitative range of White Honeycomb PVC Fills are continuously vacuum formed. These are long lasting, resistant to rugged environment, simple and sturdy in construct. Some essentials features are:

• Specially treated to offer maximum contact area for heat exchange.
• The crossing of air and water streams is in close proximity
• The proximity develops a diffused turbulence which is conducive to evaporation and efficient heat transfer.

1) Rigid Poly Vinyl chloride (PVC)
2) Honey comb design with double edge folded very large contact surface area
3) Fills Flute height 12mm to 19mm & sheet thick 0.2 to 0.25 mm
4) Fill Size : 600mm x 300mm x 150mm
5) Color : White

  PVC Fills

Owing to the immense experience and a competent team of experts, These PVC fills offered by us are made utilizing high grade raw material, which is sourced from trustworthy vendors of the market. In addition to this, the offered range of PVC fills is applicable in humidification, effluent treatment, power, petrochemical, refining, paper chemical, steel and allied industries. This PVC Cooling Tower Fills is known for distributing the liquid and gas across the many interconnected channels within the surface material. For inducing highly turbulent mixing between the water and the air, which increases heat and moisture transfer, cross fluted designs is introduced.

Features:

• Light weight

• Fire safe

• Decay proof

• Mass transfer & heat transfer coefficient

• Low pressure drop

 The fill is of rigid ploy vinyl chloride (PVC) and is of Honeycomb design with very large contact surface area. The fill splits the air and water into several streams, increasing the time of contact and also heat transfer between water and air.
The fill is in modules and is packed in the air washer & tower casing without any cutting for curves.
The air pressure drop through the fill is negligible. The fills are available with flute height of 6mm, 12mm, and 19mm with sheet thickness of 1mm and 1.2mm.Size available as per client requirement

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 Our company is involved in the manufacturing of sigma fills, which are an essential component of all marley, paharpur cooling towers. The fills are used for extended contact area having a high heat transfer efficiency.

Other Information

• Pay Mode Terms: T/T (Bank Transfer)

 Over the years of experience in the industry, we have been able to provide the customers with a comprehensive assortment of Sigma Type PVC Fill. The offered range is widely used for transferring heat from hot water, without increasing the power need of the fans. Our range is widely used in varied industrial sectors such as effluent treatment, paper, steel, petrochemical, power, steel and other similar areas.

We offer the range in following sizes:

• 64" x 24" (1600 mm x 600 mm)
• 72" x 24" (1800 mm x 600 mm)
• 72" x 36" (1800 mm x 900 mm)

Some of the finest features of the range are:

• Low pressure drop
• Fire resistant
• Decay proof
• Light weight
• Higher mass heat transfer coefficient

Other Information

• Pay Mode Terms: T/T (Bank Transfer)
